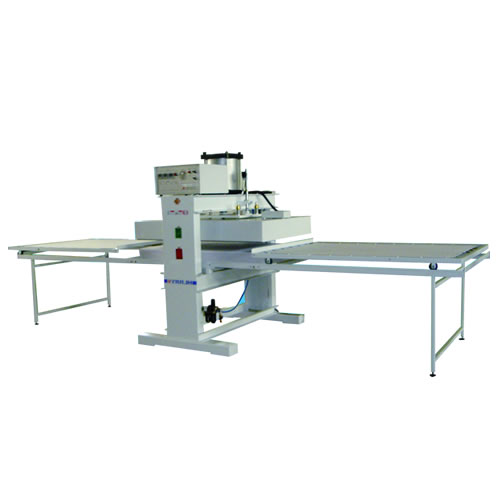

YP-121S Large pneumatic flat hot press

Download PDF File


TYPE:YP-121S   Name:Large pneumatic flat hot press

Use: Mainly uses in sublimating transfers India, foaming, to pull out dyes, the bronzing, the stereotypia and so on, Is suitable in the ready-made clothing, the cut-out pieces of material, the gym suit, the tablecloth, the glass, the plank and so on.

Characteristic: Controllable warm, controls, controls presses, durably, easy to operate, may act according to the special request to have custom-made.

Product Explanation:
The working area may have custom made according to the customer request, widest 1.6M, longest 2M;
The plane temperature is even, temperature difference scope±1.5℃;
Between the upper and under buck the pressure balance approximately 0.18kg/cm2, may through the barometric pressure adjustment;
Power source specification 380V304W, the power decides according to the hot plate size.

Order Notice: Please explain the main application, because the use different manufacture way can be different.

Model Drive Type Feed-plate way HEATING WAY MERIT
YP-121S The air cylinder presses from top to bottom Left & right Feed-plate namely double location Upper-buck electric heating Simplicity of operator
YP-121SH   Unilateral double-decked feed-plate, hand pulls the type   Saves the occupying land area space
YP-121SM   Unilateral double-decked feed-plate, motor driven   Saves the occupying land area space ,operates with ease
